Screenshots

Diátaxis: Explanation. What the dashboard actually looks like against two real data sources — a GitHub repo (astral-sh/uv) and an Atlassian Jira project on Apache’s public instance (CASSANDRA). Every chart and control on every page; nothing is mocked.

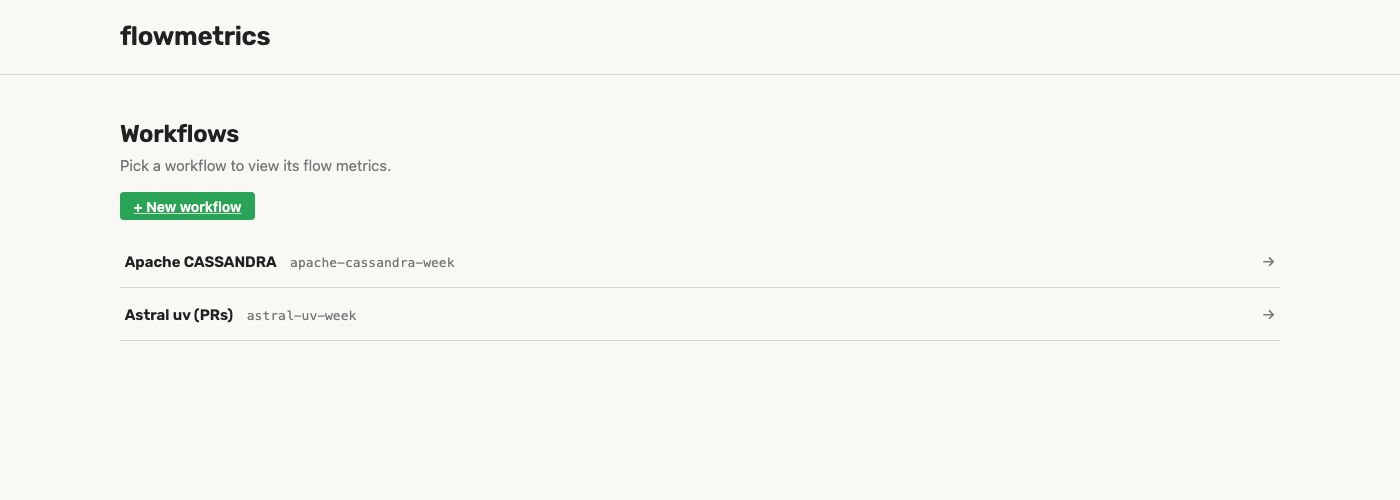

Home — workflow picker

The landing page lists every configured workflow. “+ New workflow” opens the contract builder.

GitHub source — astral-sh/uv

Full dashboard. Current state holds Aging WIP, pinned to the most recent materialize. Time slice holds Throughput, Cycle Time, Cumulative Flow, and Forecast — all driven by the Period picker (Last 7 days, Last 30 days, …).

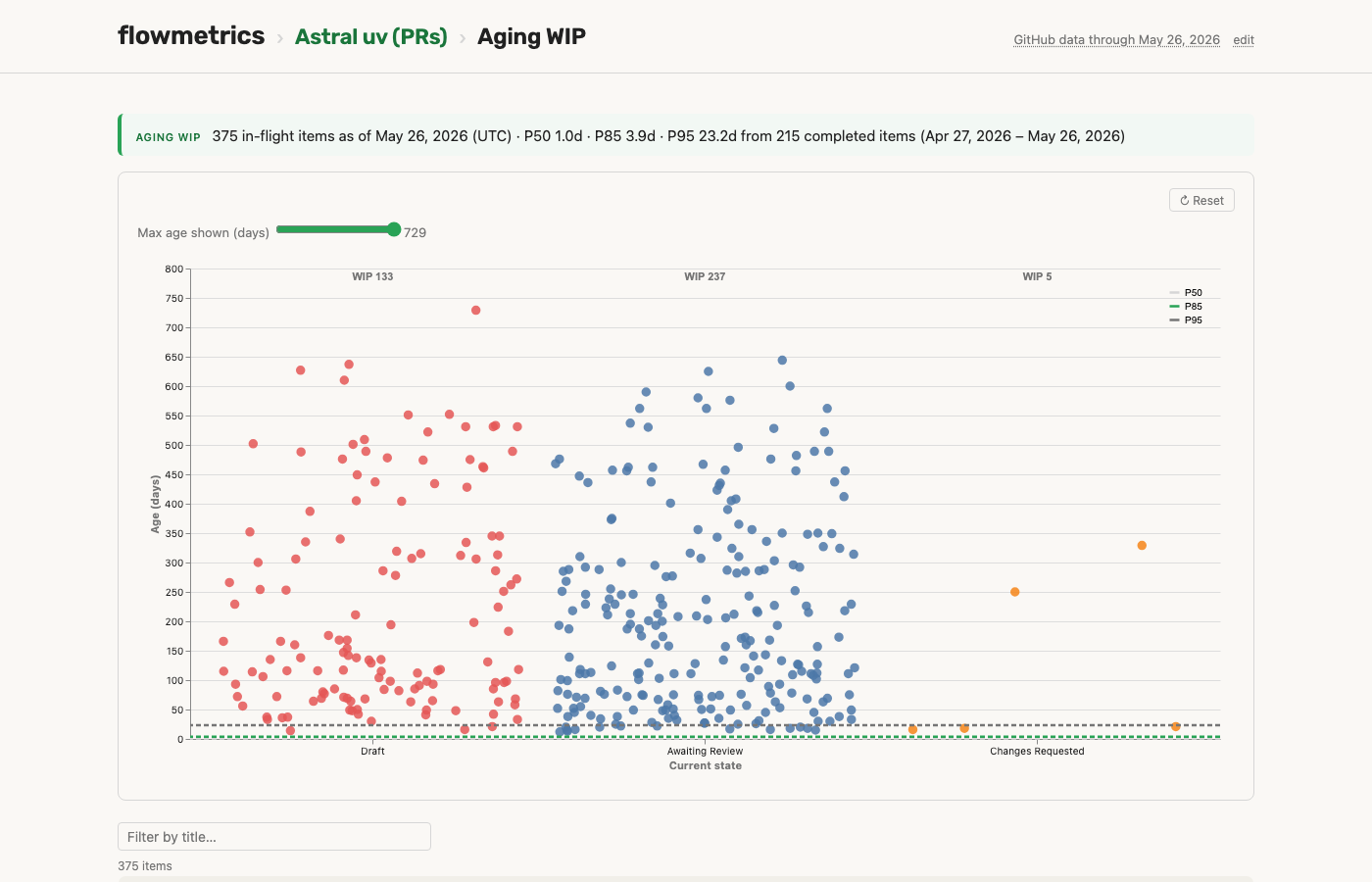

Aging WIP — detail

In-flight items plotted by current workflow state (Draft, Awaiting Review, …) × age in days. Dashed reference lines are empirical percentiles (P50, P85, P95) drawn from completed-item cycle times — not Monte Carlo outputs.

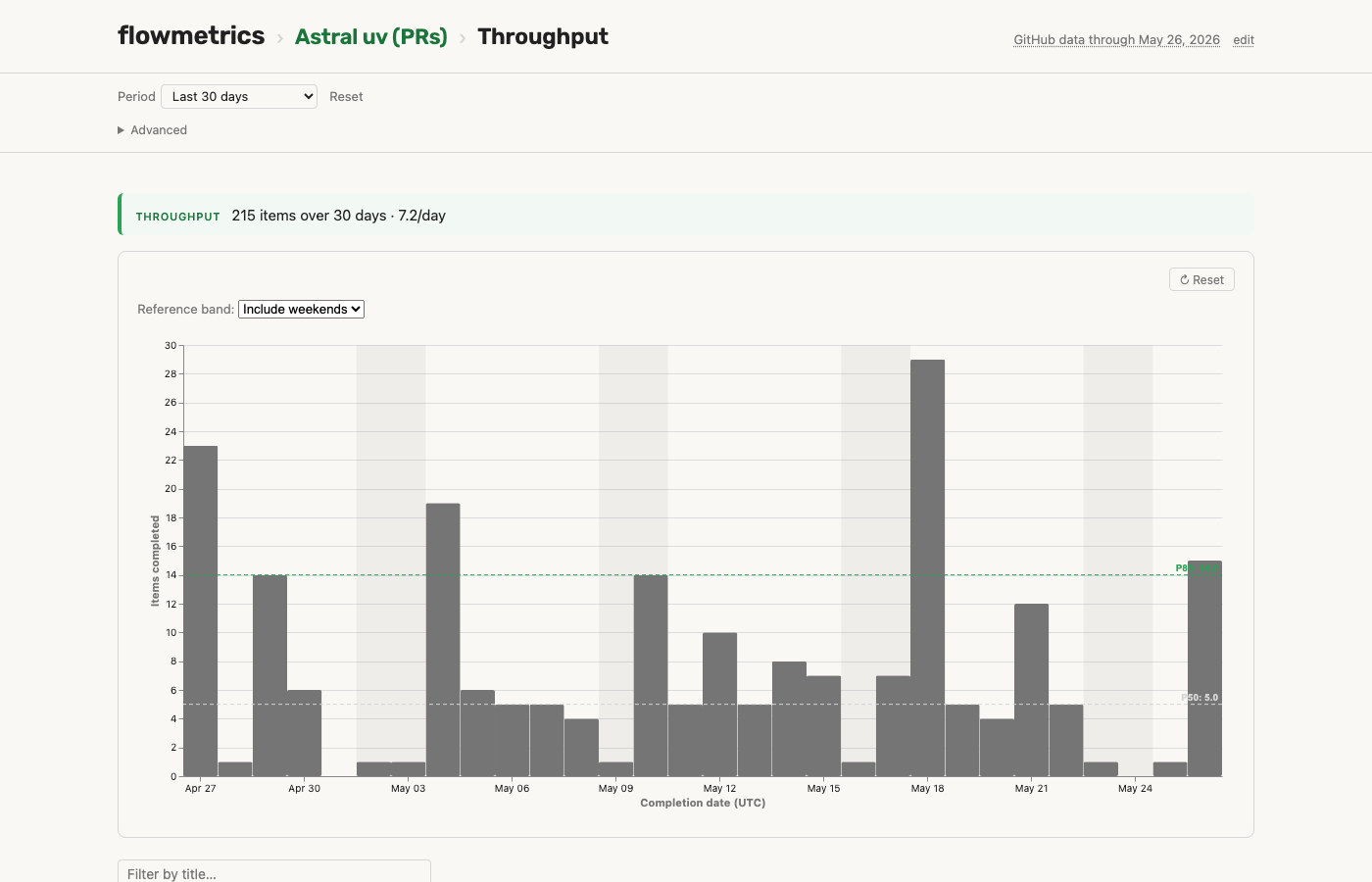

Throughput — detail

Daily completion counts as bars. The dashed horizontal rules are an empirical P50 / P85 reference band; the dropdown above the chart toggles between an “Include weekends” sample and a “Weekdays only” sample (both pre-computed).

Jira source — Apache CASSANDRA

The same dashboard shape against a Jira data source — different workflow states (Triage Needed, In Progress, Patch Available, Review In Progress, Ready to Commit, Resolved, Closed), same math.

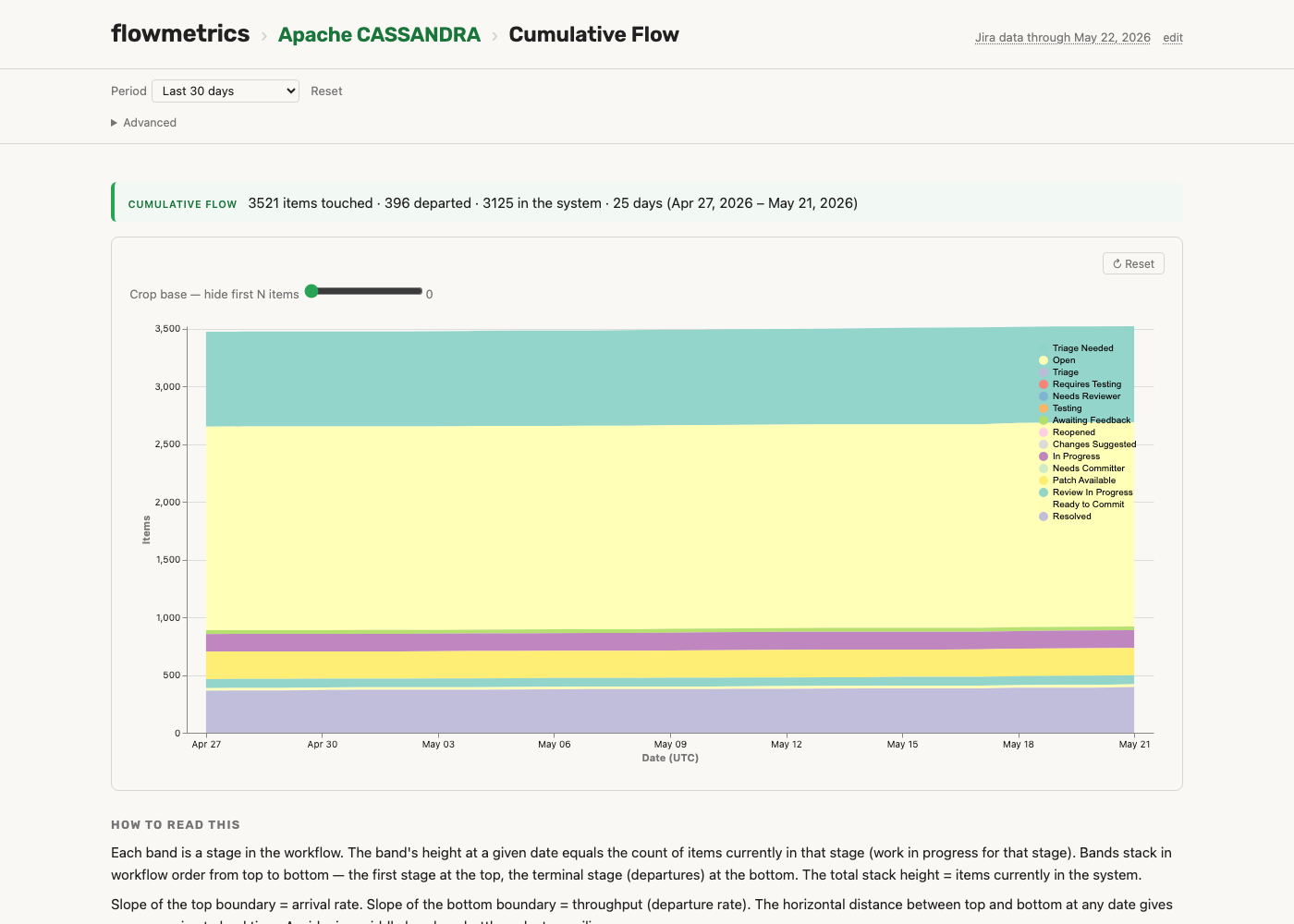

Cumulative Flow — detail

Stacked-band Cumulative Flow Diagram. Band height = items currently in that stage; total stack height = items currently in the system; slope of the top = arrival rate; slope of the bottom = throughput.

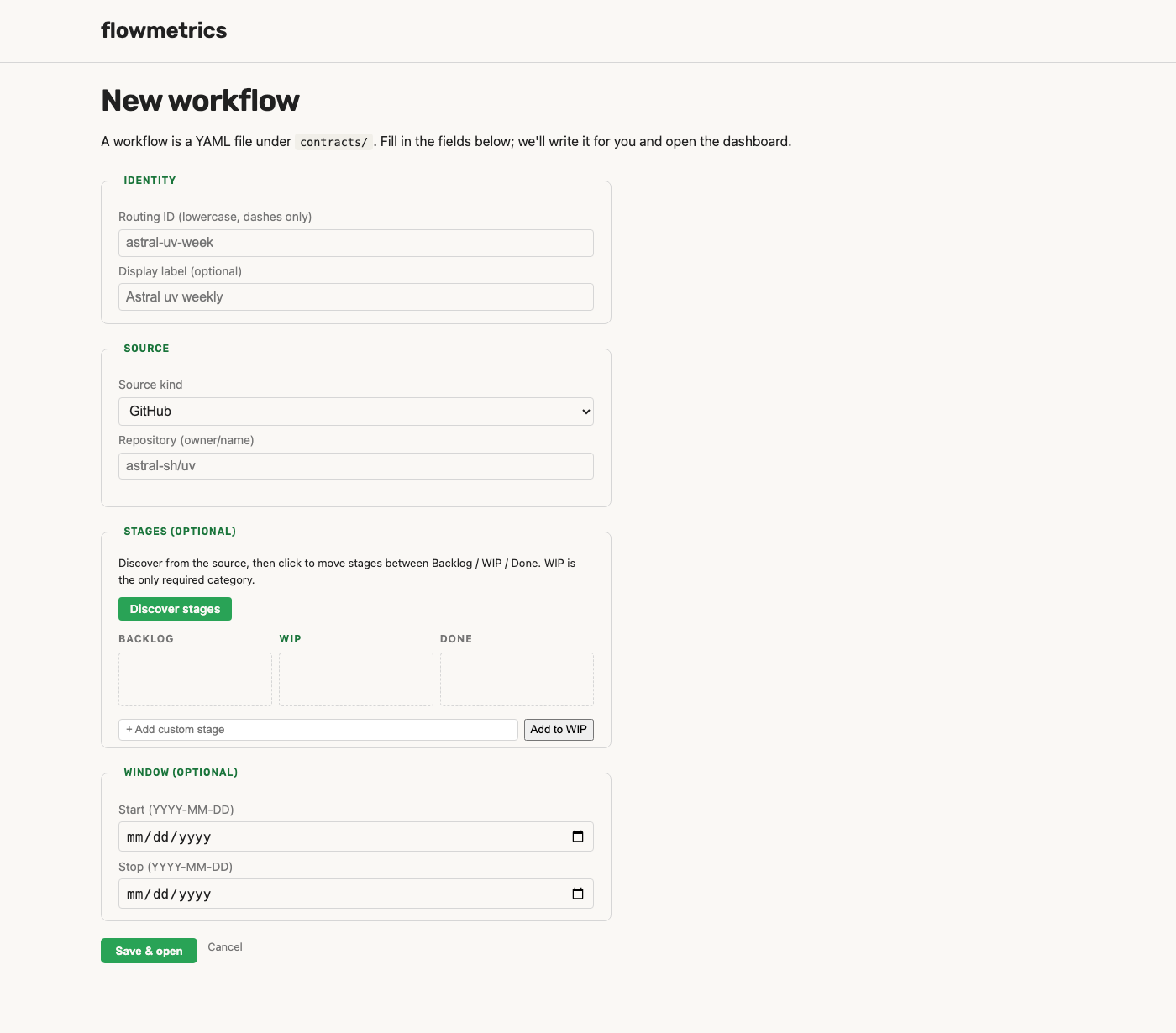

Contract builder

/admin/workflows/new builds a workflow YAML through a structured form. Source picker (GitHub or Jira), repo / project validator that pings the source API to confirm the target exists, and a stage builder that discovers known stages from the warehouse and lets the user move them between backlog / WIP / done buckets.

How these were captured

Every screenshot here is a headless-Playwright snapshot of the live dashboard at http://127.0.0.1:8000, run against the warehouse populated by:

flow materialize astral-uv-week        # GitHub PR cycle
flow materialize apache-cassandra-week  # Jira changelog
flow serve --workflows-dir contracts/ --data-dir data/

The contract YAMLs used are the copy-paste starters in samples/. Run bash docs/regen-screenshots.sh to regenerate the whole set from your local server.
